Custom CNC Machining Service OEM CNC Turning Stainless Steel Parts Milling
Various CNC Machining Part
CNC machining is a process involving different types of machines, all utilizing computer-controlled
tools to precisely remove material from a workpiece.
The advantage of this computerized control is that CNC machining offers significantly increased
speed, precision, and accuracy compared to traditional machining methods.
Product Details
Stainless steel is highly resistant to corrosion and rust, making it suitable for situations
where a part may be exposed to the elements for a long period of time.
Stainless steel is also fairly malleable and ductile.
| Common Stainless Steel Materials |
| No. | Properties |
| Stainless steel 304/304L | The most common alloy and is known for its pristine surface finish. It has significantly higher corrosion and oxidation resistance. Typically used in the manufacture of sensor parts, shafts, machinery parts, medical parts, and more. |
| Stainless steel 316/316L | It is slightly higher levels of chromium and nickel that exhibits improved heat tolerance, resistance to creep and pitting, and excellent tensile strength. Typically used in the manufacture of sensor, chemical & pharmaceutical equipment parts, and more. |
| Stainless steel 303 | It is a non-magnetic, austenitic stainless steel with good resistance to mildly corrosive atmospheres, but significantly less than 304. Typically used in the manufacture of screw, gears, fittings, bushings, shaft, and more. |
| Stainless steel 420 | It is a martensitic stainless steel with good corrosion resistance as well as strength and hardness. It is capable of being heat treated to a hardness of HRC 51 minimum. Typically used in the manufacture of pivots, cams, pump shafts, surgical instrument parts, valve components, and more. |
| Stainless steel 440C | It is a martensitic stainless steel, and is the highest carbon content from 400 stainless steel series. It is usually heat treated to reach hardness of 58 - 60 HRC. Typically used in the manufacture of valve seats, piston, shaft, and more. |
| Stainless steel 430 | It is a non-hardenable ferritic stainless steel with excellent finish quality. It has good corrosion resistance with good formability and ductility. Typically used in the manufacture of fittings, flanges fasteners, piston, and more. |
| Stainless steel 430FR | It is a free-machining solenoid quality alloy, ideal for parts that require corrosion resistance and high electrical resistivity. It has excellent corrosion resistance in fresh water, gaseous, moderately acidic, and low chlorine environments. |
| Stainless steel 630 | It is commonly referred to as 17-4 and is a precipitation-hardening martensitic stainless steel that offers superior corrosion resistance. It is magnetic, readily welded. Typically used in the manufacture of sensor housing, valve, pump shaft, and more. |
Stainless Steel Finishing and Post-Processing
We specialize in the production of custom-made products and offer surface treatment services
tailored to meet our customers' specific requirements and industry standards.
Our comprehensive solutions are both efficient and cost-effective, making us a one-stop
destination with the capacity and capability to provide integrated services.
| Name | Can be Applied with |
| Electropolishing | — |
| Electroless nickel plating | Media Blasting, Tumbling |
| Media Blasting | All post processes except Electropolish and Powdercoat |
| Nickel Plating | Media Blasting, Tumbling |
| Passivation | Black Oxide, Electroless Nickel Plating, Zinc Plating, Tumbling, Media Blasting |
| Tumbling | All post processes except Electropolish and Powdercoat |
| Zinc Plating | Media Blasting, Tumbling, Passivation |
| Powder coating | — |
| Black oxide | Media Blasting, Tumbling, Passivation |
Applications of Stainless Steel Parts
The utilization of CNC machinery extends across diverse industries, encompassing aerospace,
automotive parts manufacturing, medical machine manufacturing, transportation, defense, marine,
oil and gas, and electronics.
The incorporation of CNC machining has been transformative, allowing these sectors to achieve
heightened efficiency in the mass production of customized CNC parts.
Whether in the creation of intricate components for aerospace or the precision manufacturing
needed in medical devices, CNC machinery has become an integral component in advancing
manufacturing capabilities.
Company Profile
FAQ's
1. What tolerances can achieve?
Tolerance specifications are not one-size-fits-all and are influenced by factors like part size,
design geometry, the number and size of features, material properties, surface finish, and the
manufacturing process.
Upon order confirmation, a Design for Manufacturing review is conducted to pinpoint areas for
potential modification to enhance manufacturability. Clearly indicating critical tolerance areas in
your design is beneficial, allowing for adjustments to streamline production time and costs.
General tolerance guidelines are available for CNC machining in metal and plastic, plastic injection
molding, CNC metals and plastic injection molding materials, metal 3D printing (+/- 0.5mm),
and an expected shrinkage rate of +/- 0.15% for vacuum casting.
It is imperative to specify all manufacturing and technical requirements clearly in the 2D drawings
for accurate adherence.
2. How does you ensure the quality of my parts?
Upon confirmation of your order, a detailed Design for Manufacturing (DFM) review is carried out
to identify any potential issues affecting part quality.
All incoming materials are meticulously inspected and verified using a suite of testing equipment.
Final inspection reports are generated as part of our pre-shipment quality check.
Furthermore, we offer the option to share inspection data in real-time, enabling collaborative efforts
to address any quality concerns that may emerge during production.
3. What type of surface finishes does provide?
We provide an extensive selection of finishing services to achieve the desired look and feel for your
parts. Our offerings include treatments for metal, texturing for plastic injection mold tools, painting
for both metal and plastic, and various other options. Explore our blog to learn how to specify the
surface texture you want.
|
|

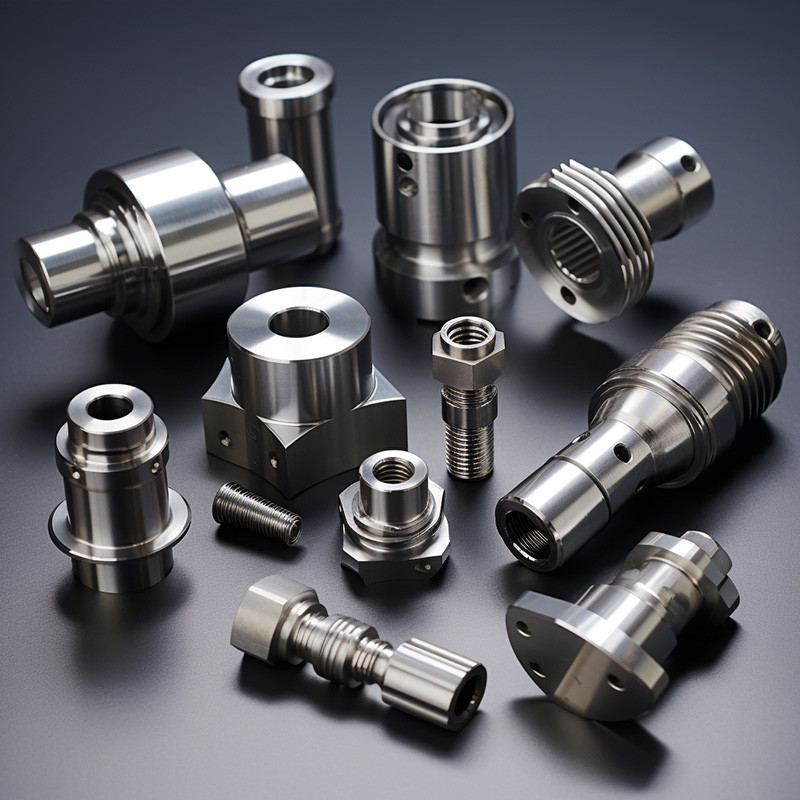

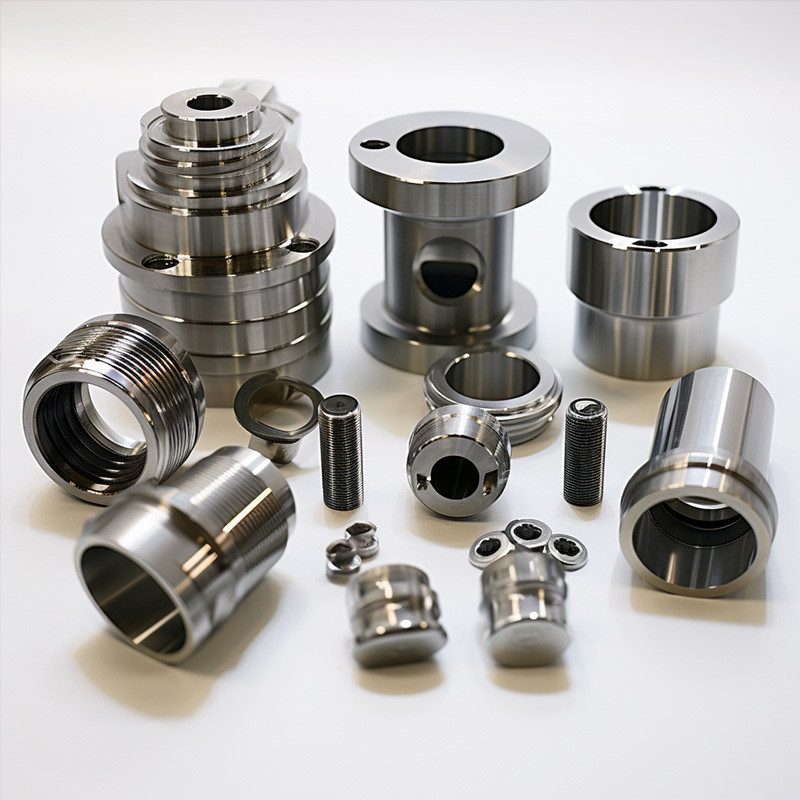

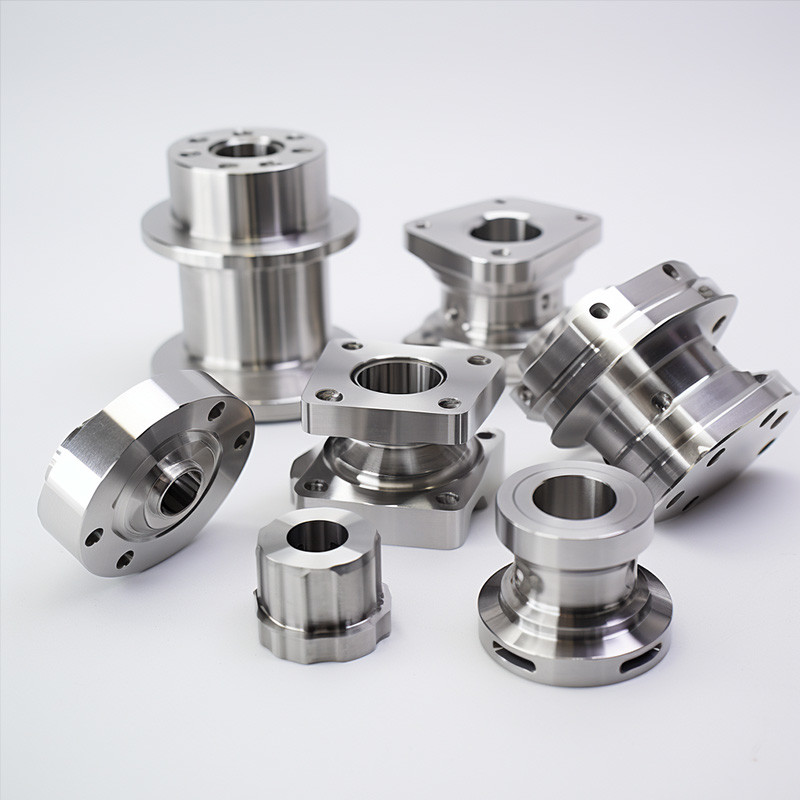

Custom CNC Machining Service OEM CNC Turning Stainless Steel Parts Milling Various CNC Machining Part Images
|
